Thingy53 Overview

×

Features

• SoC nRF5340
  • nRF5340 Product Page
  • nRF5340 Product Specification
  • 128/64 MHz Arm Cortex-M33 application processor with 1 MB Flash & 512 KB RAM
  • 64 MHz Arm Cortex-M33 network processor with 256 KB Flash & 64 KB RAM
  • Thread (Matter), Zigbee, ANT, NFC, Bluetooth (LE - Mesh - Arrival Departure Direction)
  • USB
  • Trusted Firmware M, CryptoCell-312, key management unit (KMU)
• Sensors
  • RGB Led
  • Color sensor BH1749NUC
    • BH1749NUC Datasheet
    • Measures Red, Green, Blue and IR
    • Illuminance Detection Range 80 klx (0.0125 lux/count)
  • BME688 Digital nose : low power gas, pressure, temperature & humidity sensor with AI
    • BME688 Product page
    • BME688 Datasheet
  • Accelerometers
    • ADXL362 Low Power accelerometer
    • BMI270 Accelerometer and gyroscope
    • Disconnect switch for ADXL362 and BMI270
  • Magentometer BMM150
  • VM3011 Microphone
  • Buzzer Piezo_4kHz
• RF Front End Module nRF21540
  • nRF21540 Product Page
  • nRF21540 Product Specification
  • up to +21 dBm with TX gain control
  • 13 dB RX gain with 2.7 dB noise figure
  • 6.3 up to x10 raneg extension
• Power Management Integrated Circuit
  • nPM1100 Product Page
  • nPM1100 Product Specification
  • USB input
  • 400 mA battery charger
  • 150 mA regulated output
  • Overvoltage protection
  • charge and error status
• Interfaces and peripherals
  • 2 Buttons, one user, second is internal
  • USB for Firmware update, application Data and chargin
  • External QSPI Flash MX25R6435F 64 Mbit
  • NFC Antenna
  • 10 pin SWD interface
  • Expansion for trace debug and current measurement

Development with Zephyr

• Board name thingy53_nrf5340
• Board reference PCA20053
• build targets
  • thingy53_nrf5340_cpuapp
  • thingy53_nrf5340_cpuapp_ns
  • thingy53_nrf5340_cpunet

• https://developer.nordicsemi.com/nRF_Connect_SDK/doc/latest/zephyr/boards/arm/thingy53_nrf5340/doc/index.html#
• https://docs.zephyrproject.org/latest/boards/arm/thingy53_nrf5340/doc/index.html

nRF Connect SDK

Working with nRF53 Series

• https://developer.nordicsemi.com/nRF_Connect_SDK/doc/latest/nrf/nrf53.html

Applications

• Machine Learning
• Matter - Weather Station
• Zigbee - Weather Station

nrf sdk samples

• Bluetooth - Peripheral LBS
• Bluetooth - Mesh Light
• Bluetooth - Mesh Light Fixture
• Bluetooth - Lesh Light Switch
• Bluetooth - Mesh Sensor
• Bluetooth - Peripheral UART
• nrf 5340
• Thread
• Edge Impulse

nrf zephyr samples

• Accelerometer Polling
• Magnetometer polling

Examples build

cd nrf/v2.3.0/zephyr/samples/sensor/bme680
>west build -b thingy53_nrf5340_cpuapp

• nRF Desktop Programmer
  • keep internal sw2 while power on with sw1 see Updating through USB
  • on success a new port is detected
  • use dfu_application.zip see MCUboot output build files
• restore example application firmwa with the same procedure with binaries available on the Nordic Thingy53 downloads

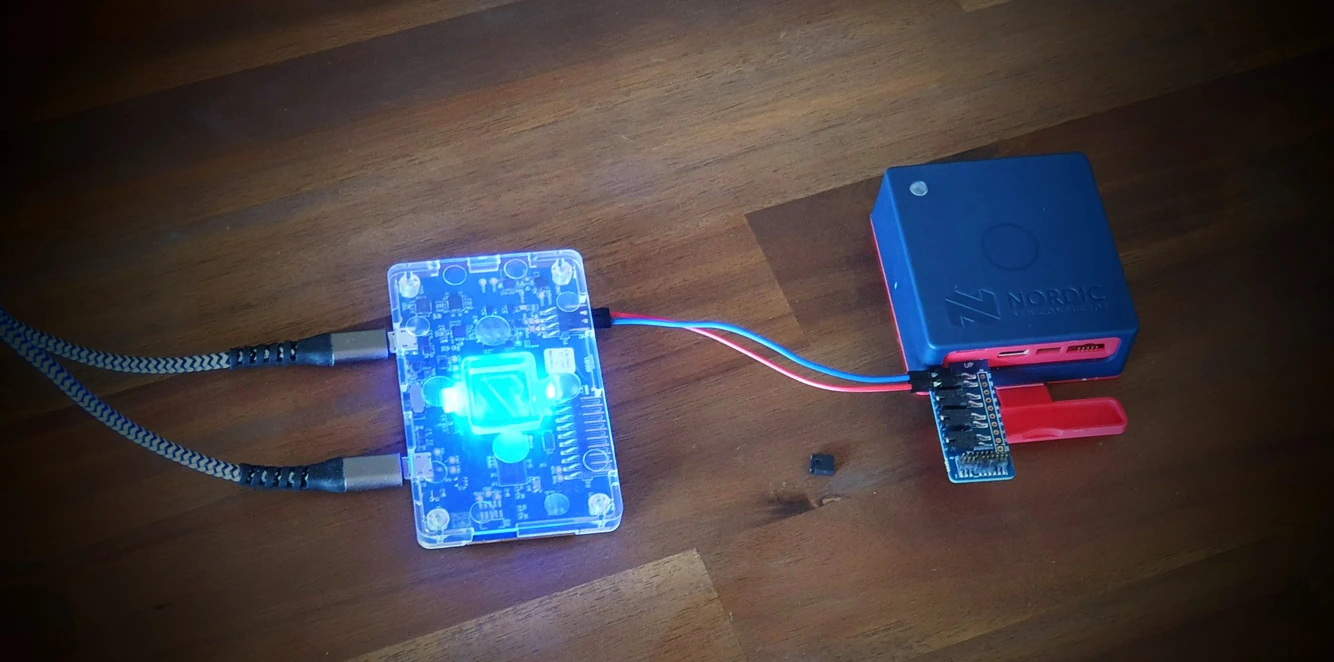

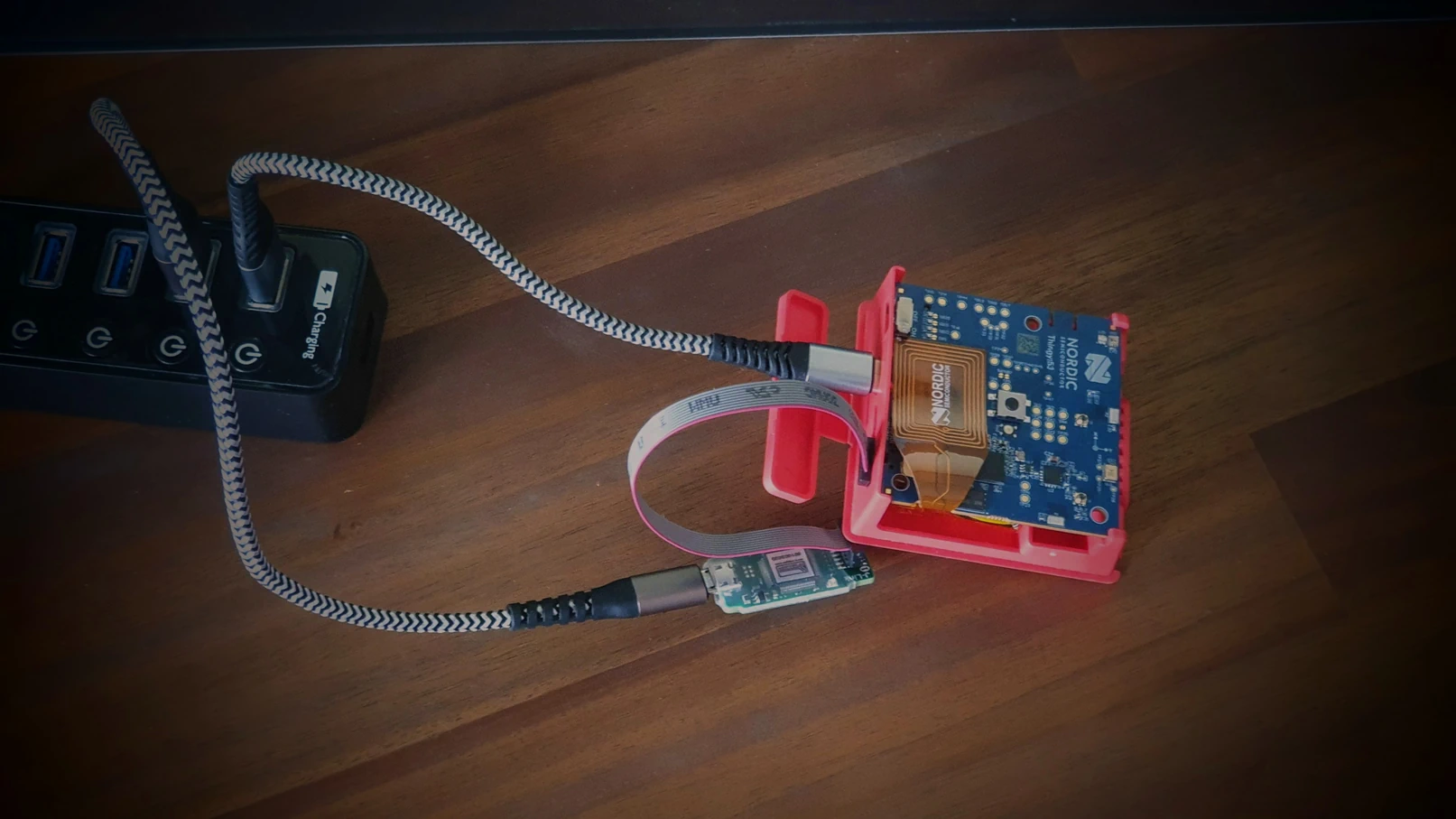

Current measure
