Trace with with SystemView

• Segger SystemView : Real time OS Tracing
• SystemView user manual : Getting started, API reference,...

• Install SystemView
• compile the target with the overlay overlay-tracing.conf and flash, reset
• SystemView Recorder configuration J-Link, NRF52840_XXAA, SWD, 4000 KHz

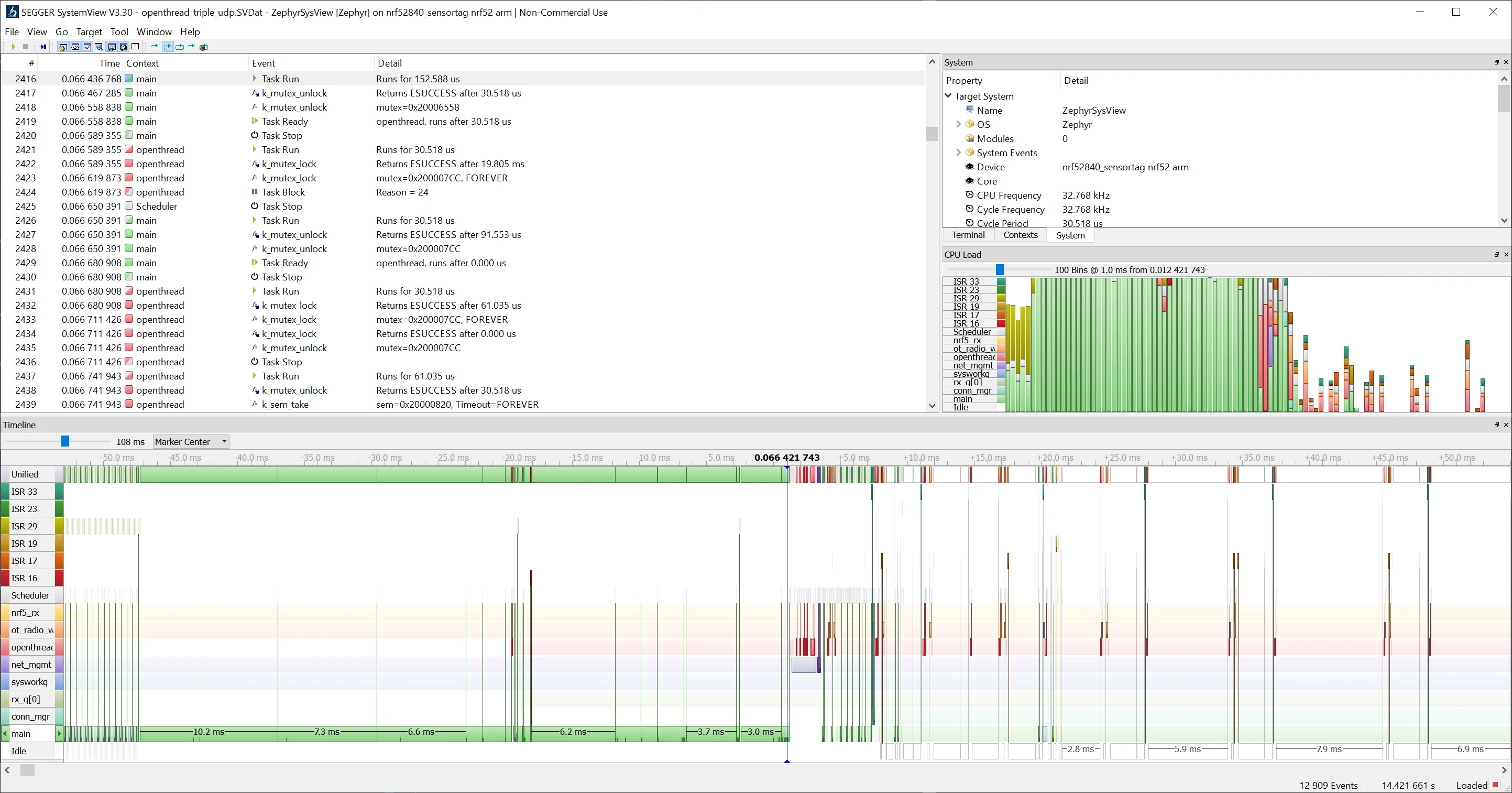

• SystemView Start Recording the Stop Recording
• if SystemViewer keeps crashing try closing the window CPU load

#Tracing
CONFIG_TRACING=y
CONFIG_SEGGER_SYSTEMVIEW=y
CONFIG_THREAD_NAME=y
CONFIG_SEGGER_SYSTEMVIEW_BOOT_ENABLE=y
# careful adjustment as long as there is enough SRAM use it for tracing 128 KB
CONFIG_SEGGER_SYSVIEW_RTT_BUFFER_SIZE=131072

Hints

• power on tracing : In case a power-on startup has to be traced, it is necessary to increase the target local RTT buffer size, because it keeps bauffering the tracing until the user has the time to start SystemView recording. For that, it is important to check how much free memory the system has, and then adjust the RTT buffer
• ISR ID Identification : the function sysview_get_interrupt() is using SCB->ICSR VECTACTIVE
• not the same as IRQn_Type defined in modules\hal\nordic\nrfx\mdk\nrf52840.h

Debug with OZone

• Ozone : performance analyzer
• RTOS Awareness : debug an RTOS

• make sure to use Ozone version 3.22d or higher
• in the new project wizard, make sure an svd file is selected e.g. from the Zephyr projecz modules\hal\nordic\nrfx\mdk\nrf52840.svd
• For a Segger j-link edu, select the Target interface SWD
• compile with CONFIG_DEBUG_THREAD_INFO=y
• select the elf file of the Zephyr build hsm/hsm/samples/tag_power/build/zephyr/zephyr.elf

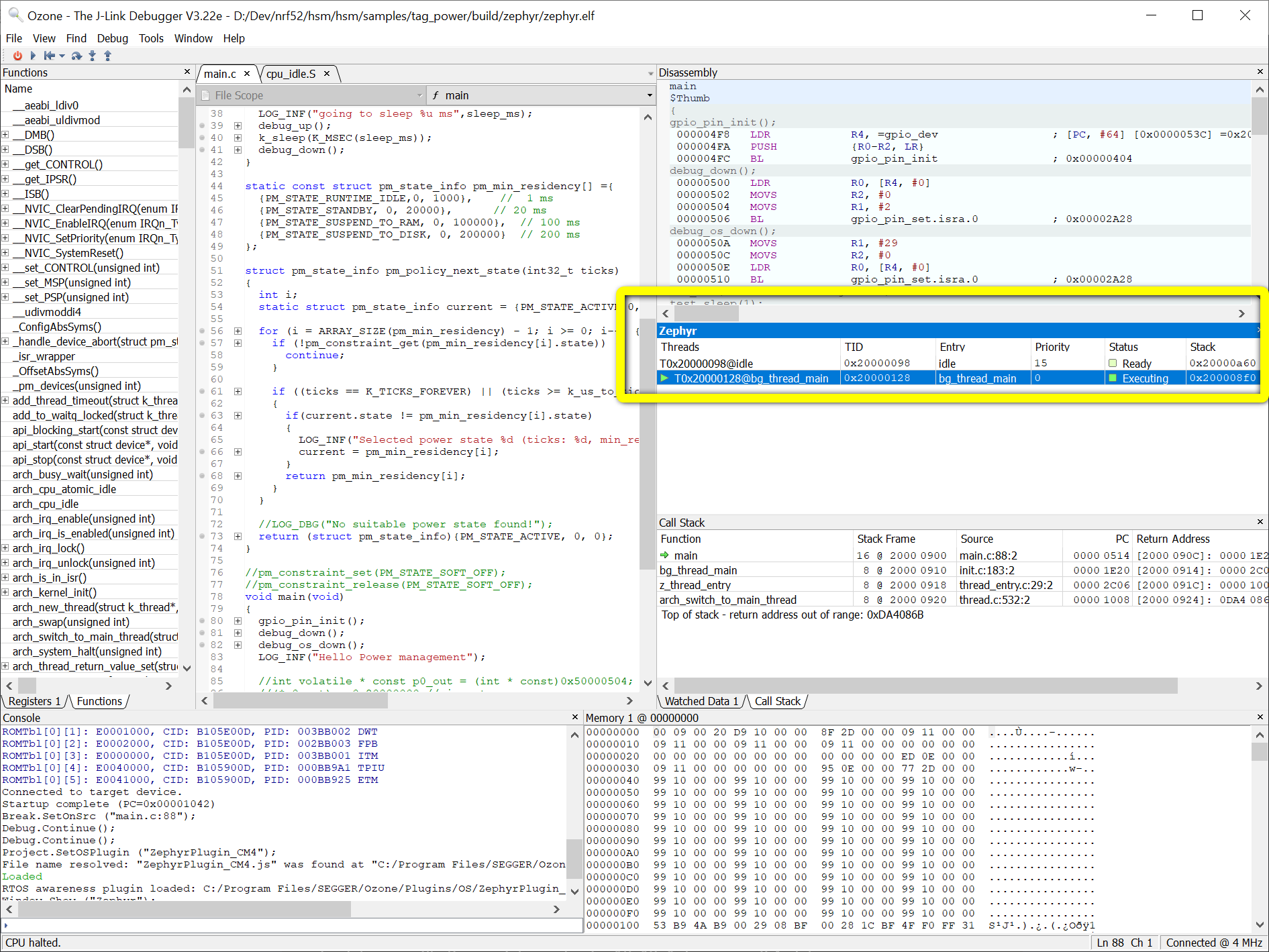

• in the bottom left console type Project.SetOSPlugin("ZephyrPlugin_CM4"). That will load the Zephyr RTOS awareness plugin
• you should now be able to access the Zephyr debug window from the menu View then in the Advanced section Zephyr

Serial Debug

• Log : CONFIG_LOG creates a logging thread and enables LOG_INF(), LOG_DBG(),... functions
  • needs a backend e.g. CONFIG_LOG_BACKEND_RTT, CONFIG_LOG_BACKEND_UART
• Shell : CONFIG_SHELL creates a shell_xxx thread that enables an interactive command line e.g. rtt:~$ kernel threads
  • needs a backend e.g. CONFIG_SHELL_BACKEND_RTT, CONFIG_SHELL_BACKEND_SERIAL

shell command examples

>help
>kernel threads
>kernel stacks
>log enable dbg main

Windows Install

• Installing choco
• Installing west dependencies with choco
• installing west with pip
• the retrieving the repo and building are performed through west
• The compiler toolchain as multiple options
  • Zephyr own SDK, not available on windows
  • GNU ARM Embedded : to be installed on a path without spaces

Linux Install

• installing Zephyr with its own compiler toolchain Zephyr SDK
• install Zephyr dependencies - Ubuntu
• install nRF Command Line tools

tar -xf nRFCommandLineTools10121Linuxamd64.tar.gz
sudo dpkg -i nRF-Command-Line-Tools_10_12_1_Linux-amd64.deb

Build and Flash

cd ~/zephyrproject/zephyr/samples/basic/blinky
west build -p auto -b nrf52840dongle_nrf52840 -- -DCONF_FILE=prj.conf
west flash
nrfjprog -f nrf52 --reset

RTT config

CONFIG_GPIO=y
CONFIG_SERIAL=n
CONFIG_BOARD_HAS_NRF5_BOOTLOADER=n

# Logging
CONFIG_LOG=y
CONFIG_LOG_BACKEND_RTT=y
CONFIG_LOG_BACKEND_UART=n
CONFIG_BOOT_BANNER=y
CONFIG_USE_SEGGER_RTT=y
CONFIG_CONSOLE=y
CONFIG_UART_CONSOLE=n
CONFIG_RTT_CONSOLE=y

#include <zephyr.h>
#include <logging/log.h>
LOG_MODULE_REGISTER(main, LOG_LEVEL_INF);
void main(void)
{
	LOG_INF("Starting");
	int count = 0;
	while (1) {
		LOG_INF("loop: %d",count++);
	}
}
